Modular Scroll Chillers with Heat Recovery
Products

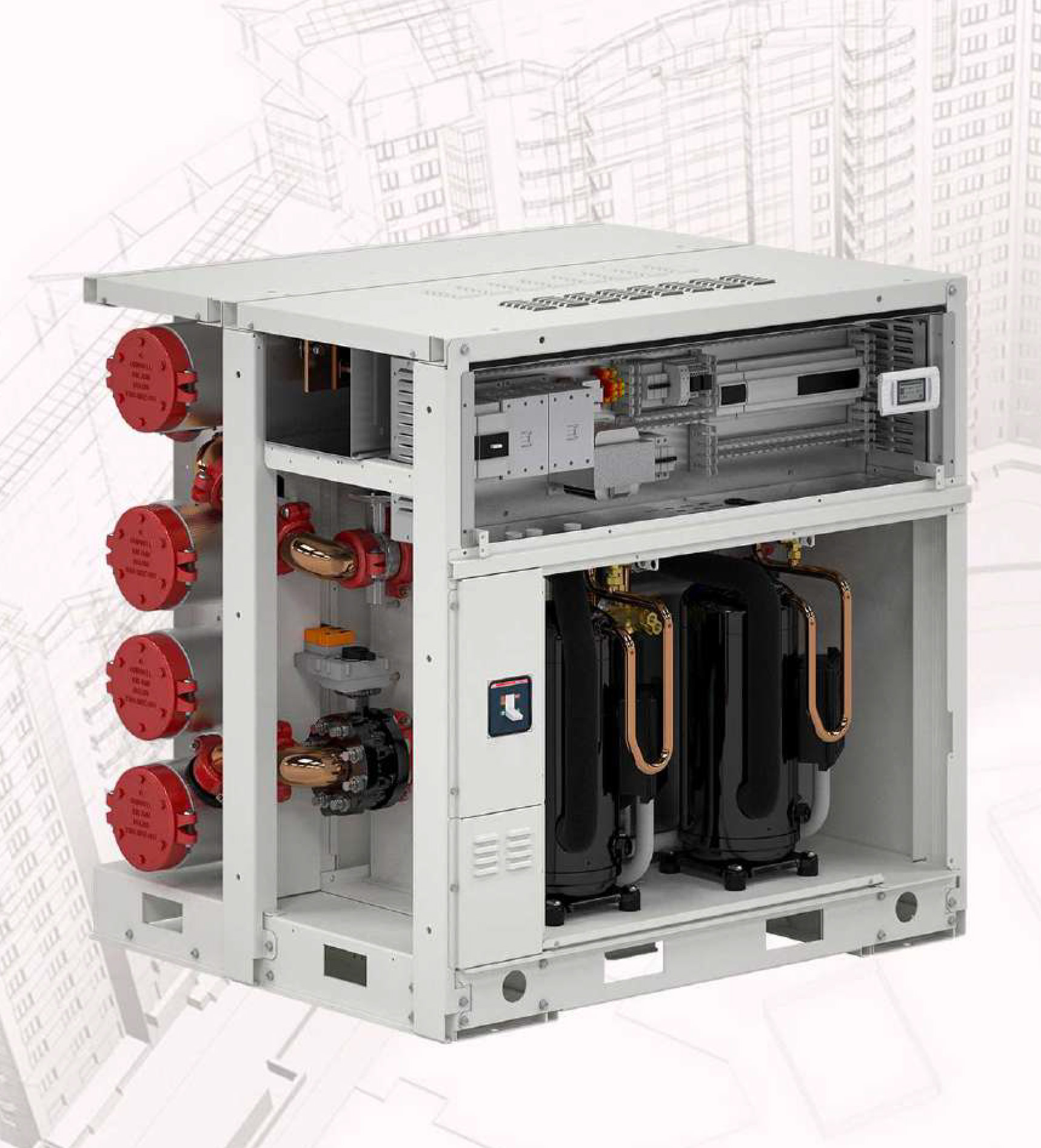

Modular Scroll Chiller
Chiller With Built-In Heat Recovery Scroll Compressors With Plate Exchangers
Heat Pump with reversible water side for indoor installation.
Bi-circuit units reversible water side with hermetic R410A scroll compressors, high efficiency installation and source side plate exhanger.
Made to allow total accessibility to internal components for service and maintenance.

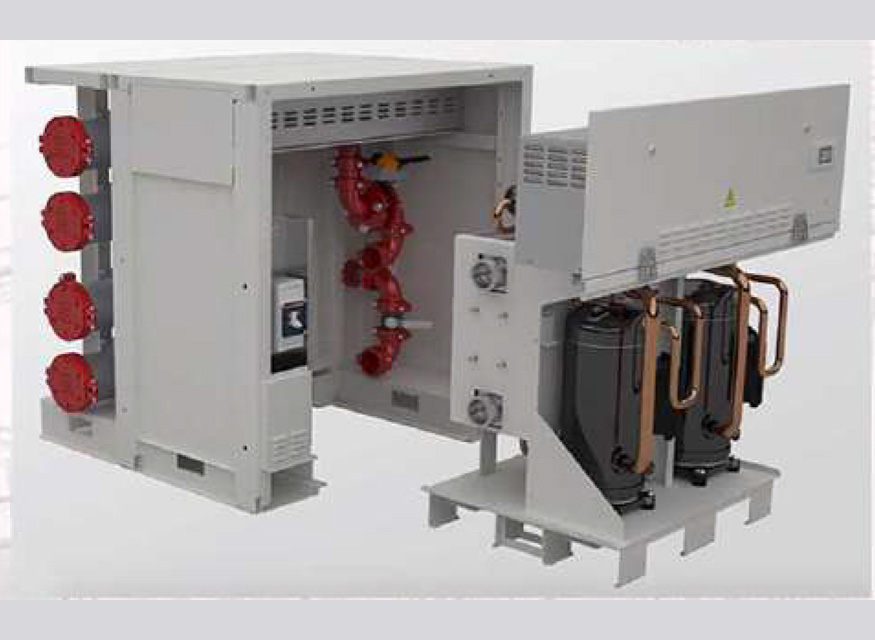

Easy installation and maintenance thanks to practical disassembly of the cooling circuit from hydronic side.
- Cooling Capacity: 95.9kW
- Heating Capacity: 108.9kW
- Network operation - option
- Compatible with MODBUS - option
- Internet connection - option
-

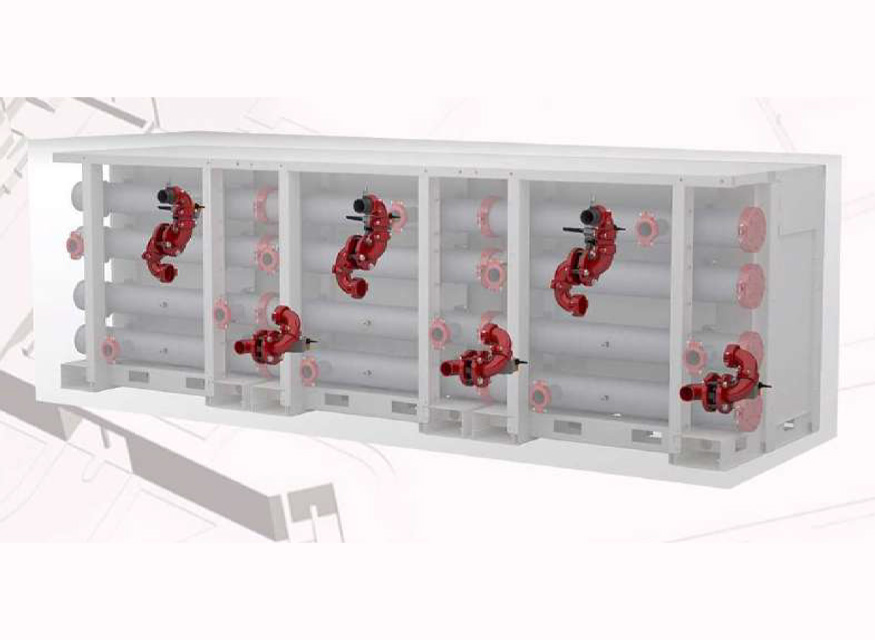

Modularity
-
Compact Size
-
Easy Maintenance
-
High Efficiency
-
Stand By Safety
-
Low Cost Installation
Product
Specifications
WMX300A (R134a)
| Capacity | 96.2kW | 86.3kW | 123kW |
| Chilled Water Outlet Temperature | 7◦C | 4◦C | 15◦C |
| Chilled Water Inlet Temperature | 12◦C | 9◦C | 20◦C |
| Cooling Tower Water Outlet, Temperature | 30◦C | 30◦C | 30◦C |
| Efficiency (COP) | 4.92 | 4.5 | 6.3 |
Minimum / Maximum Chilled Water Outlet Temperature: 4◦C to 18◦C (cooling)
Minimum / Maximum Chilled Water Outlet Temperature: 25◦C to 55◦C (Heating if required)
Maximum Ambient Temperature: 45◦C
This module is design to function as a chiller for your cooling needs or a heater If you have requirements for hot water usage.
Thanks to the friendly design, you can switch between cooling and heating within minutes!

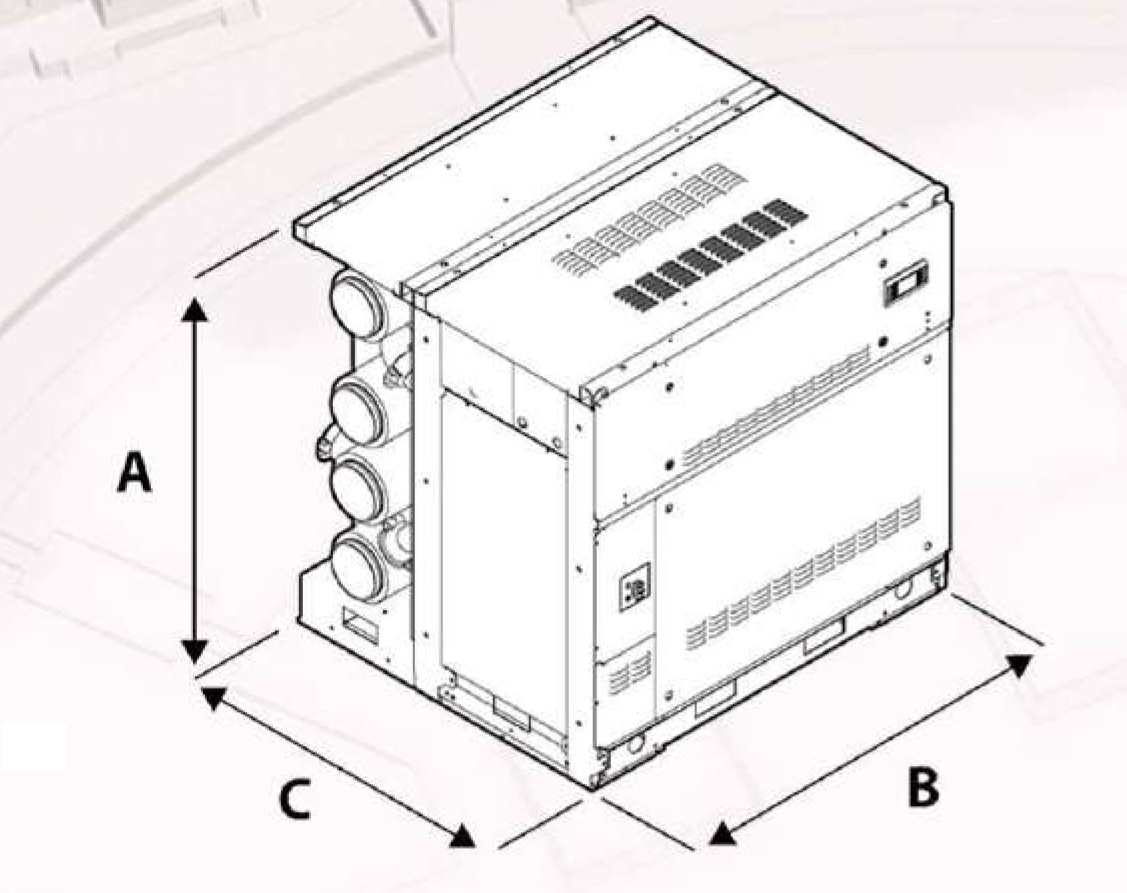

Dimension -- WWM0500
| A | 1300mm |
| B | 1330mm |
| C | 1150mm |
| WEIGHT | 970kg |
