Modular Centrifugal Chiller
Products
Modular Centrifugal Chiller

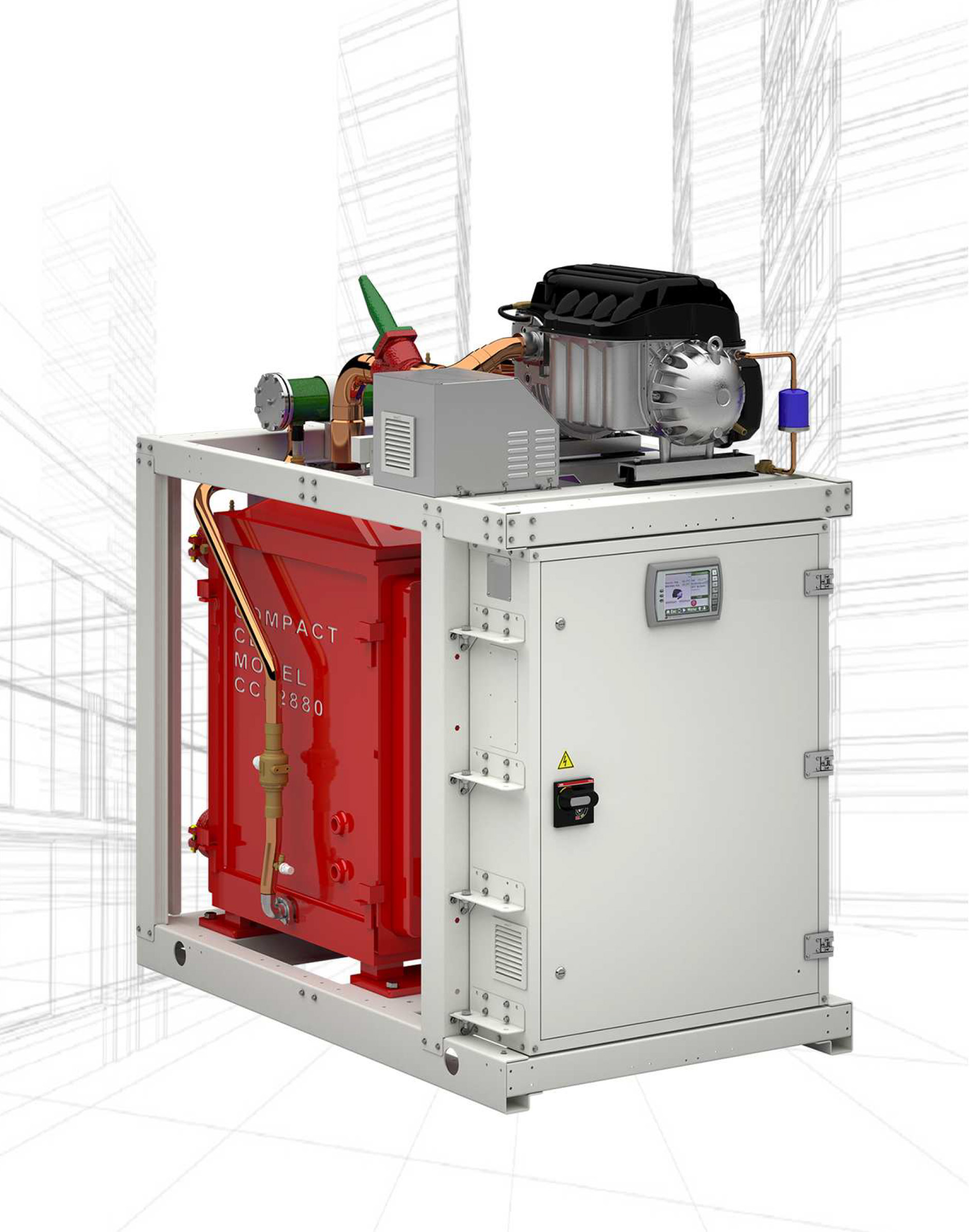

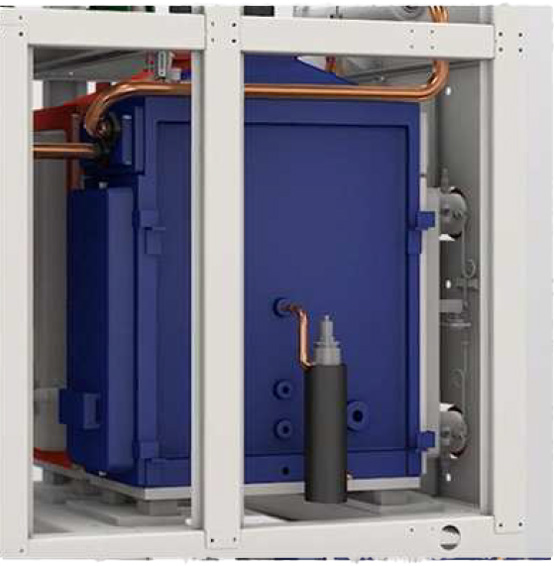

Water Cooled Chiller With Centrifugal Compressor Flooded Evaporator

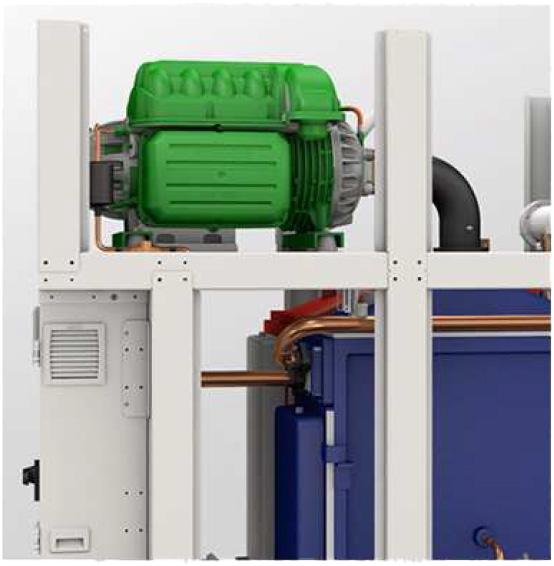

Modular water-water chiller for internal installation with “oil free” magnetic levitation centrifugal compressors flooded tube core heat exchanger with a spray system on the plant side.
The unit boasts efficiency at partial loads with very high ESEER values, an electronic thermostatic valve, touch screen LCD user interface, reduced way and greater compactness.
- R134a for WMX.
Cooling Capacity: 279.7 to 323.6kW
- R1234ze for WMG.
Cooling Capacity:281.8 to311.8kW
- Low noise (option)
- Network operation (option)
- Compatible with MODBUS (option)
- Internet connection (Option)
-
Modularity
-
Compact Size
-
Easy Maintenance
-
High Efficiency
-
Stand By Safety
-
Low Cost Installation
Product
Specifications
WMX300A (R134a)
| Capacity | 325kW | 306kW | 373kW |
| Chilled Water Outlet Temperature | 7◦C | 5◦C | 15◦C |
| Chilled Water Inlet Temperature | 12◦C | 10◦C | 20◦C |
| Cooling Tower Water Outlet, Temperature | 30◦C | 30◦C | 30◦C |
| Efficiency (COP) | 5.6 | 5.25 | 7.41 |
This Specifications is indicative & subject to change. Please contact us for exact specifications.
WMG300A (R1234ze)
| Capacity | 313kW | 293kW | 360kW |
| Chilled Water Outlet Temperature | 7◦C | 5◦C | 15◦C |
| Chilled Water Inlet Temperature | 12◦C | 10◦C | 20◦C |
| Cooling Tower Water Outlet, Temperature | 30◦C | 30◦C | 30◦C |
| Efficiency (COP) | 5.62 | 5.22 | 7.67 |
Minimum / Maximum Chilled Water Outlet Temperature: 5°C ta 20°C Maximum Ambient Temperature: 45°C

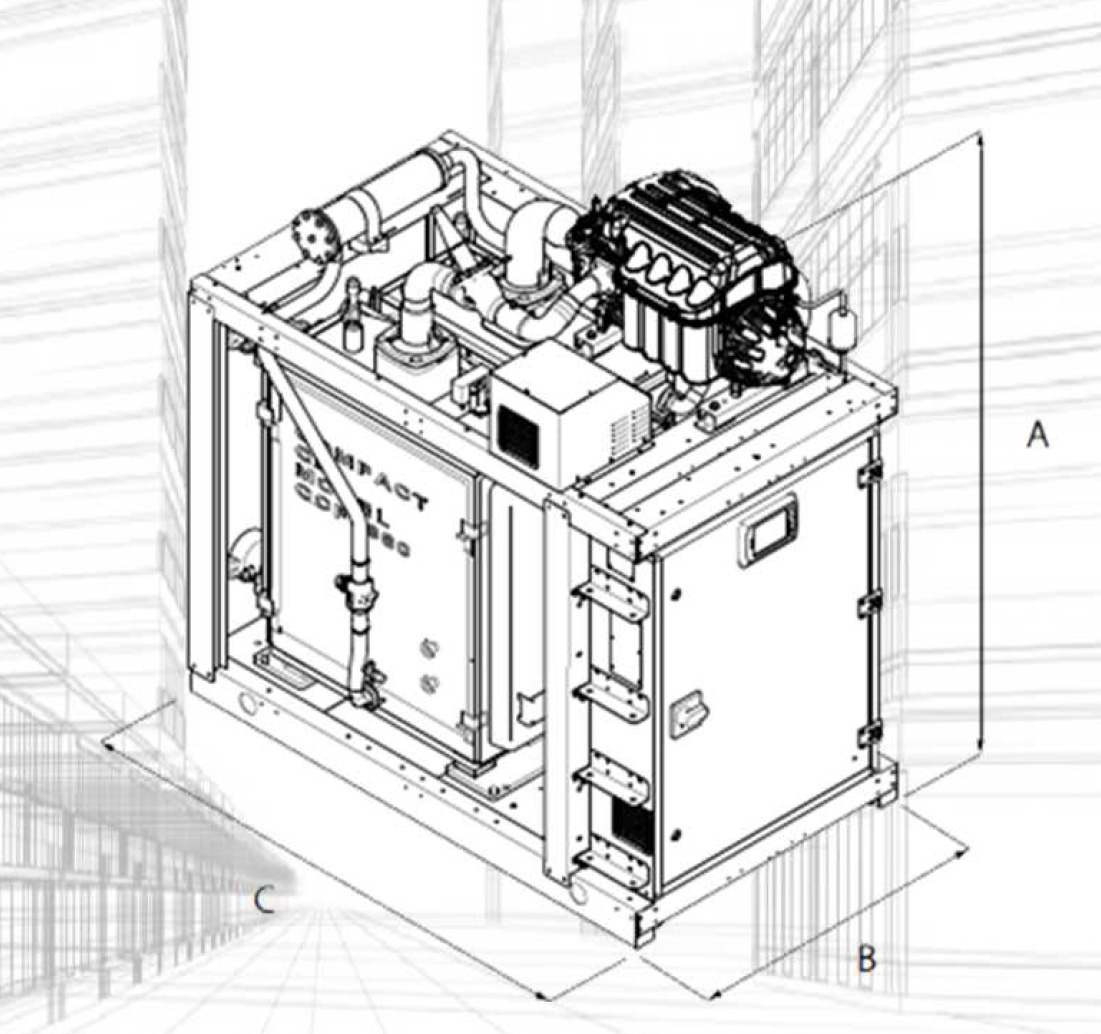

Dimension -- WMX / G
| A | 1905mm |
| B | 1041mm |
| C | 1770mm |
| WEIGHT | 2025-2205 kg |
